Ergonomic Pallet Lift Table for Easier, Faster Palletizing
A self-leveling pallet lift table is designed to keep loads at an ideal working height during palletizing and depalletizing. The Pentaloader combines ergonomic performance with a fully mechanical spring system, helping reduce strain while improving efficiency in industrial environments.

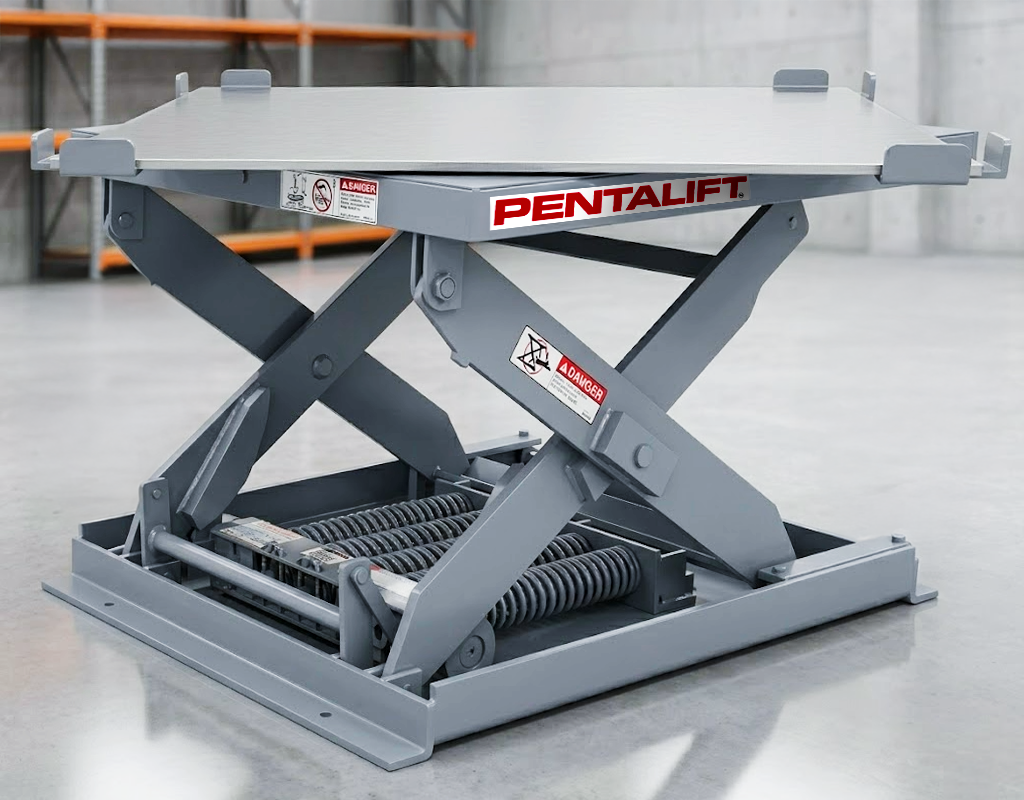

The Pentalift Pentaloader is a robust self-leveling pallet lift specifically engineered for efficient palletizing and de-palletizing of pallets and skids in warehouses, manufacturing facilities, distribution centers, and production environments. This ergonomic lift table automatically adjusts the platform height as the load changes, consistently keeping the top layer of goods at an optimal working height to support comfortable, low-strain manual handling throughout the entire process. As a spring-loaded pallet positioner, the Pentaloader maintains a consistent working height without external power, supporting safer and more efficient manual pallet handling. It is commonly used as both a pallet lift table and a self-leveling skid lift table in facilities handling mixed load types.
Self Leveling Pallet Positioner with Adjustable Load Capacity

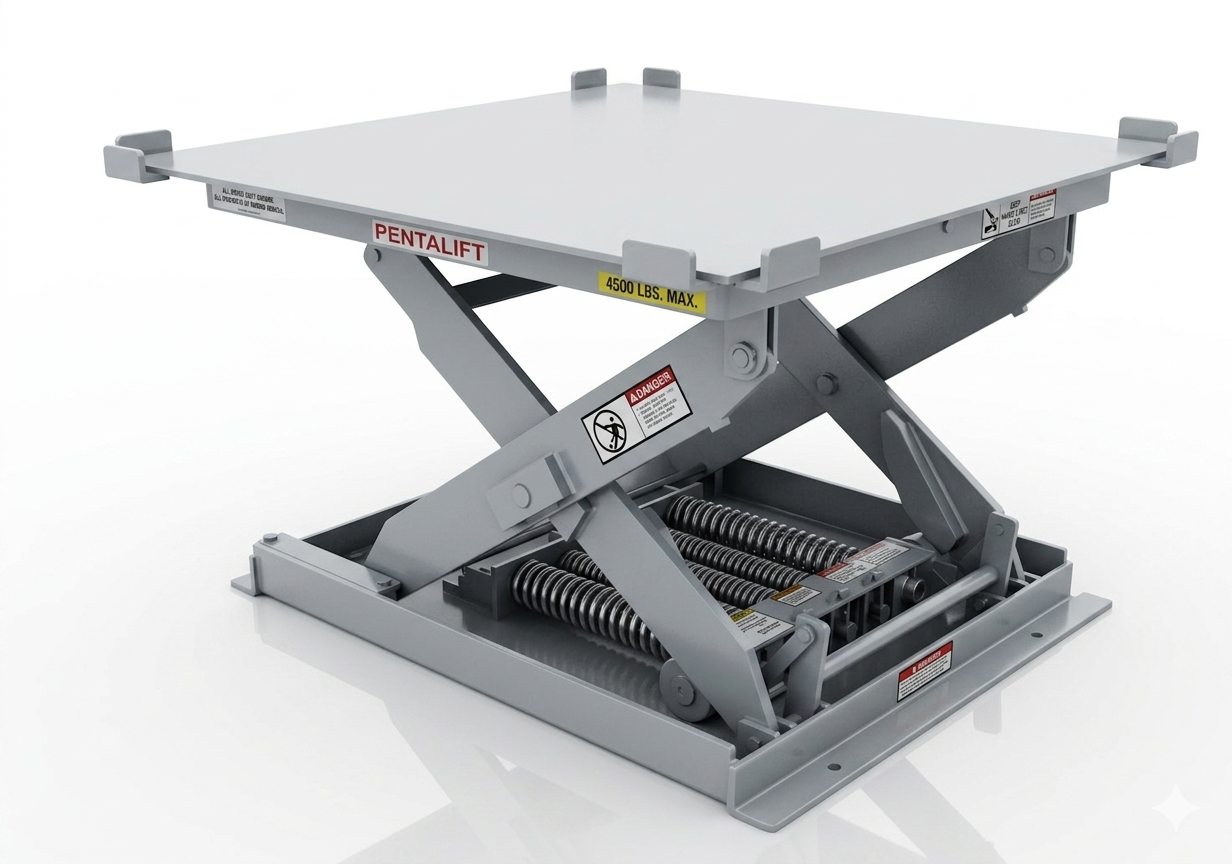

The Pentaloader is available in four models (XPL1, XPL2, PL1, PL2), each featuring a 48″ x 48″ platform with a maximum capacity of 4,500 lbs. Each model is equipped with its own dedicated spring set, configured for a defined pallet weight range, with four adjustable settings using quick U-pins to ensure proper self-leveling performance across varying load requirements. Its patented spring-cam mechanism provides true self-leveling operation without the need for electrical connections, hydraulics, or compressed air. This makes the Pentaloader a highly adaptable self-leveling pallet positioner for facilities handling varying pallet weights and product types.
Rotating Pallet Positioner with 360 Degree Access
Built for demanding environments, the Pentaloader features a 360° rotating turntable integrated into a scissor-lift platform. This design allows operators to manually rotate pallets on the platform, eliminating the need to walk around loads, overreach, or work in awkward positions.
Designed as a low-maintenance, energy-free solution, it operates entirely on a reliable mechanical spring system, making it ideal for demanding industrial environments. Each unit comes standard with corner locator tabs to ensure consistent pallet positioning, with optional extended tab configurations available to accommodate pallet clearances up to 58″.
Additional options such as the spring adjusted turntable brake, accordion skirting and fork pocket configurations for easy relocation further enhance the equipment’s versatility. For a complete overview of available configurations and features, please refer to the Options category.
How a Self-Leveling Palletizer Improves Workflow Efficiency
The Pentaloader offers robust and heavy duty construction. It is physically much heavier than competitive products. Its rugged construction supports continuous use in demanding applications, delivering long-term reliability and value. Functioning as an automatic pallet leveler, the system continuously adjusts to load changes, helping maintain consistent productivity throughout the palletizing process. As a result it is the equipment of choice for users in industries that benefit its heavy duty construction and reliable continuous operation. Industries such as Automotive and Advance manufacturing utilize and benefit from use of the Pentaloader. For complete specifications, options, and load charts, refer to the Pentaloader brochure or contact Pentalift to configure the ideal solution for your application
An Eco Friendly and Sustainable Material Handling Solution
The integral spring packs in the Pentaloader are used to change the physical location of the pallet during loading or unloading of the pallet. There is not additional power source electrical or pneumatic required. This reduced installation costs. It also makes it easier to relocate the Pentaloader and makes it an environmentally “Green” solution.
