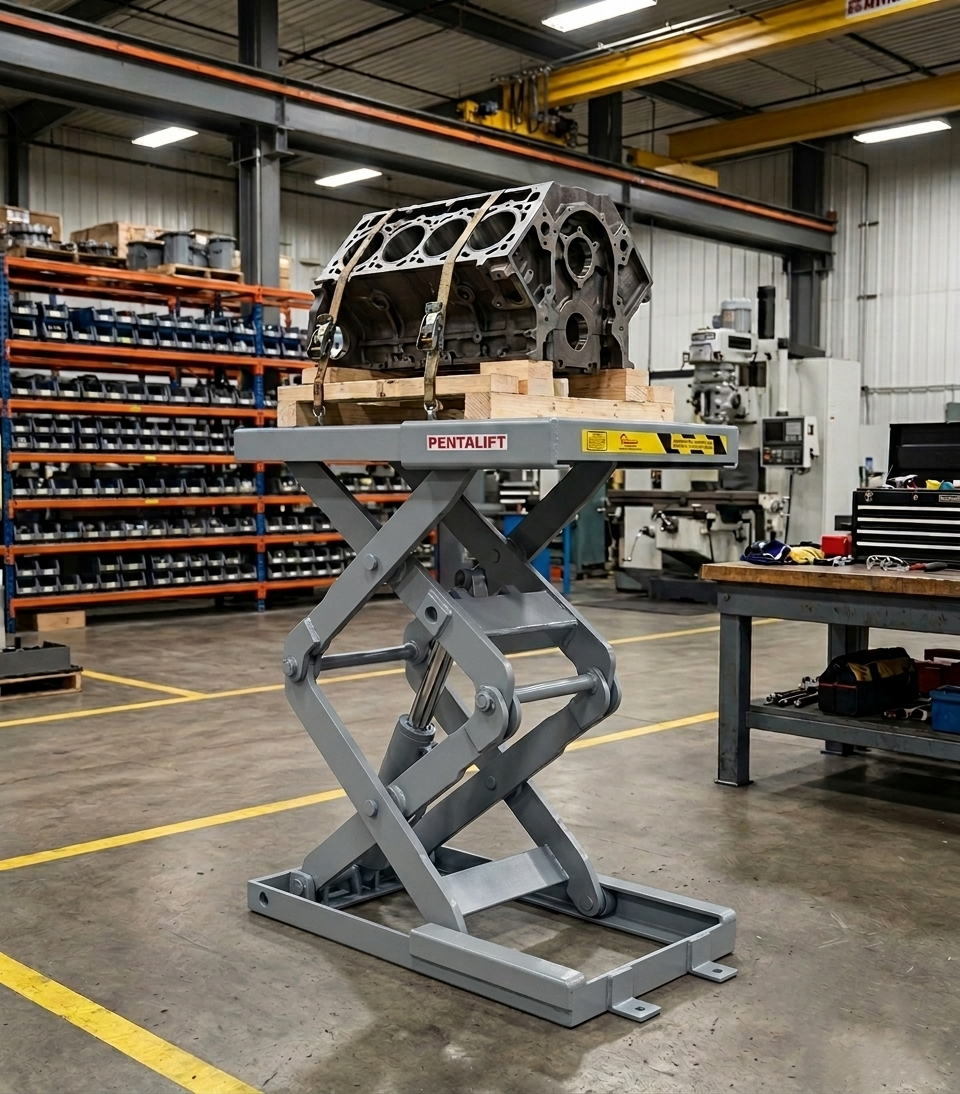

Double Scissor Lift Tables for High-Travel Material Handling Applications
For applications requiring increased elevated load positioning, a double scissor lift table provides greater lifting height than a standard lift table. The double scissor arrangement accomplishes the additional travel without increasing the equipment’s footprint.
Engineered for reliable performance in manufacturing, warehousing, distribution, and other material handling applications, these higher-travel lift tables enable the safe and efficient movement of pallets, products, components, and equipment between work levels.
Benefits of Double Scissor Lift Tables
- Achieve greater lift heights in confined areas
- Improve workflow between different elevations
- Reduce manual material handling
- Support ergonomic workstations
- Improve productivity and operational efficiency
- Integrate seamlessly into existing production environments
Durable Construction
Key design features include:
- Reinforced structural steel scissor assemblies
- Full-width hinge pins for enhanced stability
- Upper & lower guided roller systems
- Exclusive PentaFLOW hydraulic cylinders
- Rugged platform construction for demanding applications
The result is a high-travel scissor lift table capable of handling challenging workloads while maintaining consistent performance.
Applications for Double Scissor Lift Tables
Double scissor lift tables are used across a wide range of industries where vertical access, product positioning, and material handling efficiency are critical.
Common Applications Include
- Warehouse and distribution operations
- Conveyor system integration
- Assembly line positioning
- Machine feeding and staging
- Pallet handling systems
- Elevated workstations
- Product indexing applications
- Manufacturing and packaging operations
Wherever materials must be lifted safely and efficiently to higher elevations, a multi-stage hydraulic lift system can provide an effective solution.
Standard Capacities and Lift Ranges
Pentalift double scissor lift tables are available in a range of standard configurations, including:
- Load capacities: 2,500 lb / 4,000 lb / 6,000 lb
- Platform sizes: 24” x 36” up to 54” x 84”
- Vertical travel: approximately 43” to 90”
- Installation: surface-mounted standard, pit optional
Custom capacities, platform dimensions, and travel heights are also available.
How to Select the Right Double Scissor Lift Table
Selecting the right double scissor lift table starts with understanding the demands of your application. While platform size and capacity are important, several additional factors influence long-term performance, safety, and productivity.
Load Capacity
The first consideration is the maximum weight the lift table will handle. Be sure to account for the combined weight of the product, pallet, containers, tooling, or any equipment that may be placed on the platform. Choosing a lift table with appropriate capacity helps ensure reliable operation and longer equipment life.
Required Lift Height, Platform Dimensions & Installation Method
Double scissor lift tables are commonly used when applications require greater vertical travel than a standard single-stage lift table can provide. Determining the maximum platform height needed will help identify the appropriate scissor configuration and travel range.
The platform should be sized to support the load while allowing operators to work efficiently. Larger or irregularly shaped loads may require custom platform dimensions to ensure stability and proper load distribution.
Double scissor lift tables can be installed as either surface-mounted or pit-mounted systems. Surface-mounted installations typically offer quick turnaround, while pit-mounted configurations create flush-floor access that can improve workflow and reduce trip hazards.
Custom Engineered Lift Table Solutions
No two facilities operate exactly the same, which is why Pentalift provides flexible customization options to align with your workflow, application requirements, and production objectives. Many lifting applications demand more than a standard off-the-shelf solution, so our engineering team works closely with customers to design and optimize industrial hydraulic lift platforms for their specific needs.
Pentalift regularly develops engineered solutions for a wide range of specialized applications, including:
- Non-standard load applications
- High-cycle manufacturing operations
- Automated production systems
- Dual-level material handling
- Custom platform configurations
- Unique facility layouts
If your project presents specific operational challenges, our engineering team can design a solution tailored to your process, performance expectations, and long-term operational goals.
Request a Quote
Our team can help identify the right double scissor lift table for your application and develop a solution that meets your lifting and operational requirements.
Contact Pentalift today to discuss your project and request a custom quote.
