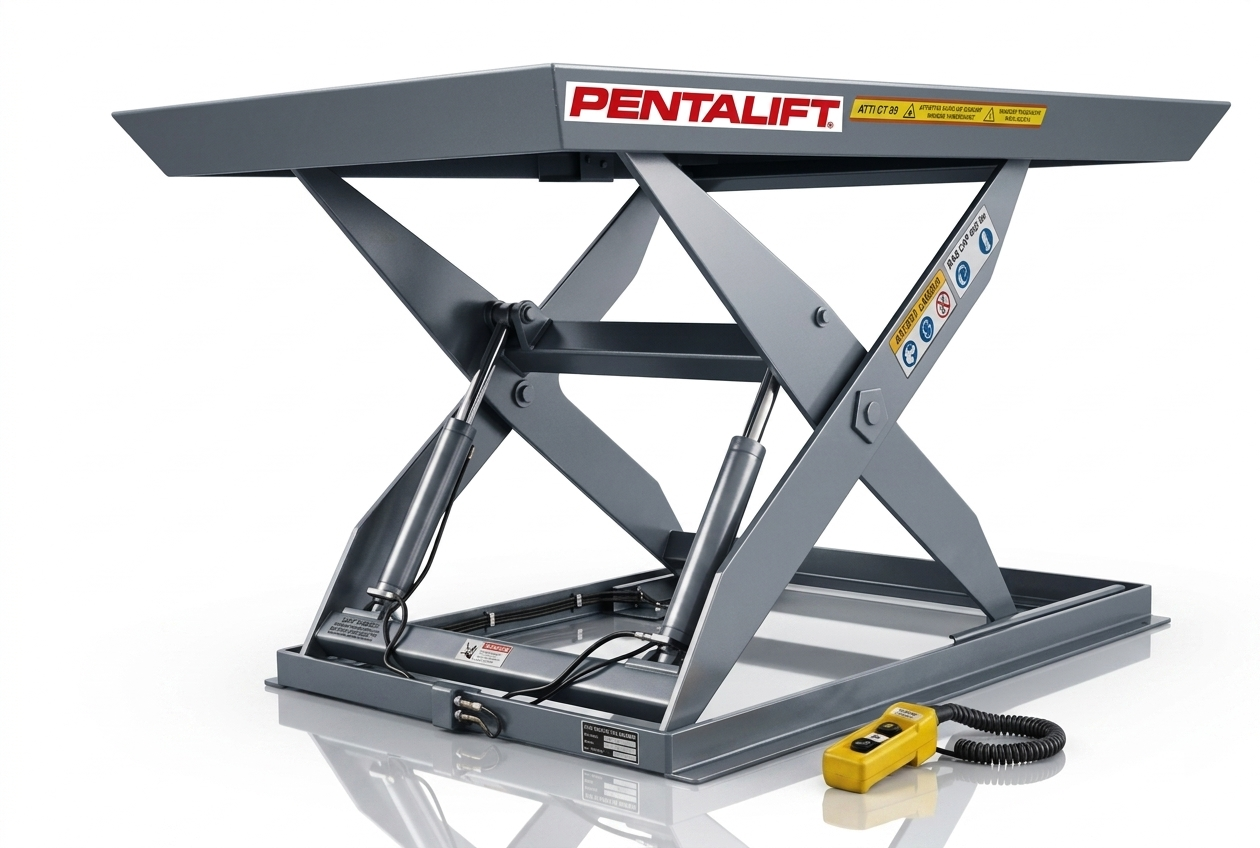

Pentalift 12L Lift Tables are industrial grade, durable hydraulic scissor lift tables designed for reliability and performance. With a low 12” lowered height, travel up to 59”, and capacities ranging from 3,000 to 15,000 lbs, they provide a versatile lifting solution for many industrial applications. Available in multiple platform sizes and configurable for both surface-mounted and pit-mounted installations, the 12L Series integrates easily into a wide range of material handling environments.
Heavy Duty Lift Tables for a Wide Range Of Applications
Pentalift’s 12L Lift Tables are engineered for demanding environments where durability, reliability, and long service life are essential. With capacities from 3,000 to 15,000 lbs and a variety of platform sizes, these hydraulic lift tables support a wide range of applications.
These lift tables are commonly used across manufacturing and assembly lines, steel and metal fabrication, packaging, warehousing, distribution, and aerospace and defense sectors. Built for durability and high load capacity, they provide a dependable solution for a wide range of demanding applications.
Surface-Mount and Pit-Mounted Lift Table Options
Surface-Mounted (Standard Models)
Standard models are designed for surface-mounted applications and feature straight platform edges for straightforward installation with minimal site preparation.
Pit-Mounted (Flush-to-Floor) Options
For flush floor integration, the 12L Series can be configured for pit mounting using beveled toe guards or toe sensor systems to meet safety requirements.
Key Benefits To Pit-Mounting: When configured as a pit mounted lift table, the platform sits flush with the floor, allowing for seamless loading and unloading across the floor. This setup works especially well with pallet jacks, carts, and high-traffic workflows. It eliminates the need for ramps and improves overall ergonomics.
Standard Key Features of the 12L Series
The 12L Series features a low-profile 12-inch lowered height and is constructed with high-strength, solid steel scissor legs, reinforced pivot points, maintenance-free bearings, and Pentalift’s Pentaflow hydraulic bypass cylinders for demanding applications.
Units include a remote power unit, push-button pendant controls, and multiple voltage options to suit facility requirements.
Commonly Selected Options Include:
- Bevelled toe guards or toe sensor systems
- Limit switches for controlled travel
- Accordion skirting
- High-duty cycle packages
- Central grease systems for easier maintenance
Click to See Our Full List of Standard Lift Table Options Available
Custom Lift Table Solutions
The 12L Series can be configured to meet custom operational requirements, including platform sizes, capacities, controls, and safety features. Each unit can be tailored to match workflow demands, duty cycles, and facility layouts.
